What does pinned and recessed mean when referenced with a revolver. What does it do? Is this a good thing to have?:confused:


·
Registered
Joined
·
4,029 Posts
only on older smiths it means the barrel is pinned in so it cant turn without pin removed..

Recessed means the case heads sit below the level of the cylinderface


·
Premium Member
Joined
·
932 Posts
Discussion Starter · #3 ·
Bud, Is this good, bad, or doesn't really matter. Thanks for the response.


·
Registered
Joined
·
4,029 Posts
Its Good and makes the older smiths worth more.. in reality it really doesnt matter.. but if you can find a P&R Older Smith in excellent shape jump on it


·
Premium Member
Joined
·
932 Posts
Discussion Starter · #5 ·
I was polishing up my guns today and noticed the my DW .44 mag had recessed chambers. Does that mean it is pinned too? Do the two always go together?

Thanks in advance Bud

Snag


·
Premium Member
Joined
·
932 Posts
Discussion Starter · #7 ·
Excellent point, I never thought of that. Thanks


·
Registered
Joined
·
4,029 Posts
I was polishing up my guns today and noticed the my DW .44 mag had recessed chambers. Does that mean it is pinned too? Do the two always go together?

Thanks in advance Bud

Snag


No as said it wont if its a interchangeable barrel model


·
Premium Member
Joined
·
932 Posts
Discussion Starter · #9 ·
Bud, Can you clarify. I am not sure what you mean.

Thanks

Snag


·
Registered
Joined
·
4,029 Posts
No the barrel wont be pinned if its a interchangeable barrel model I have seen one DW that didn't have a interchangeable barrel i dont remember if it was pinned or not

The pin goes right threw the top of the barrel thread so the pin has to be knocked out before removing the barrel


·
Unemployed
Joined
·
218 Posts
I was just in the neighborhood and saw this thread. At any rate, a picture is worth a thousand words -- so --

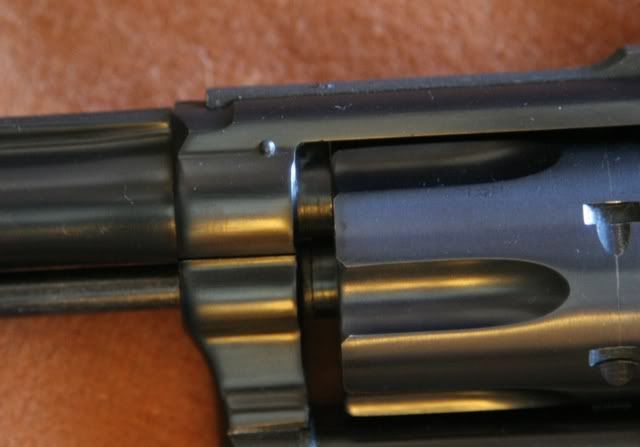

Pinned



Recessed



On my old Smith & Wesson K-22


·
Premium Member
Joined
·
932 Posts
Discussion Starter · #12 ·
Thanks very much


·
Registered
Joined
·
203 Posts
Years ago Dan Wesson offered a set. It came with a couple of different grips, and several interchangeable length barrels, all in one guncase. Great idea, but didn't catch on very well.

Recessed means the rear of the cylinder has been recessed for the rounds to sit flush with the face. Most skip that time consuming step now.


·
Premium Member
Joined
·
932 Posts
Discussion Starter · #15 ·
Well, I guess mine is just recessed and not pinned. Thanks for all the posts, I now know what pinned and recessed means and I can ID it.

Snag:shades:
